The screens of the Elegance and Professional lines, also in the Tensio CTS and Tensio Classic versions, are mounted with two different types of installation, which allow different configurations to suit the various types of applications.
The standard assembly system focuses on aesthetics, and hides the support structure from sight. First of all the standard support device is secured to the bracket with a screw and hooked onto the profile. Then the plastic wrench is used to fasten the bracket in the optimal position: the assembly is finally tightened with a nut (see picture on the right).

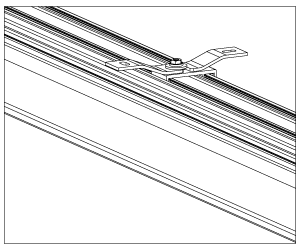

Standard ceiling installation

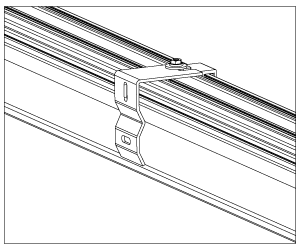

Standard wall installation
The optional quick assembly system is simpler and faster, and ideal for the professional installations. Just anchor the 4 cm and 20 cm hooks of the case into the single (wall- or ceiling-mount) bracket and finally block the screw. To facilitate these operations it is advisable to partially tighten the nut before proceeding with the alignment.

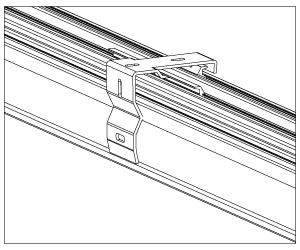

Quick installation

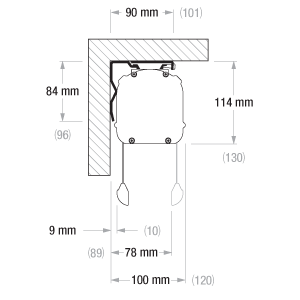

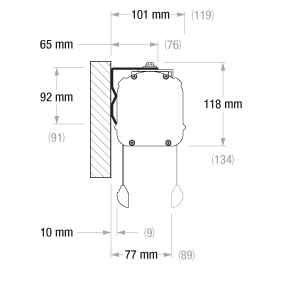

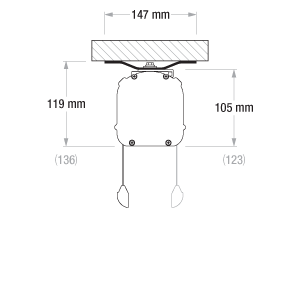

Installation of 103 (and 119) mm case screens

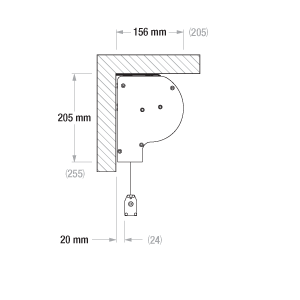

Installation of OnSuperior screens with 90 (and 120) mm rolling tube

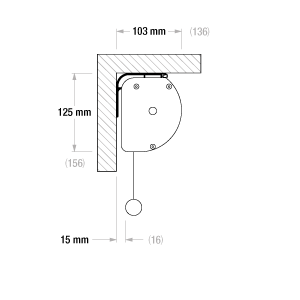

Installation of Linear SE screens

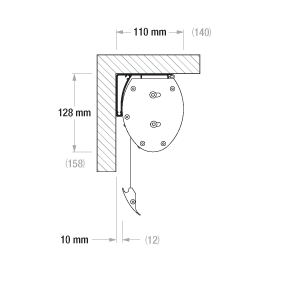

Installation of Rugby PLUS and PRO screens with 61 (and 90) mm rolling tube

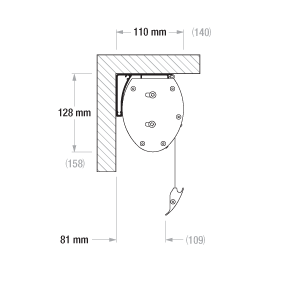

Installation of Rugby PLUS and PRO screens with 61 (and 90) mm rolling tubewith front fall

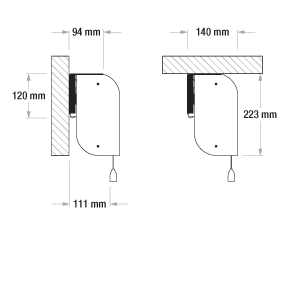

Installation of Multiformat screens

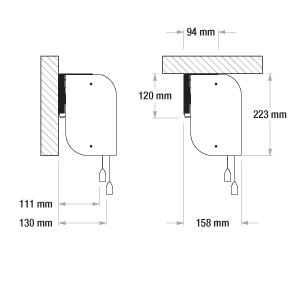

Installation of Biformat screens
Installation of large-scale screens

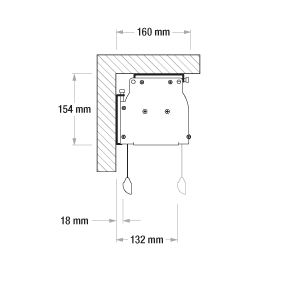

The Alumid screen, whether wall- or ceiling-mounted, is installed exclusively with the quick method, with front or rear surface drop. The structure of the case enables immediate anchoring to the bracket.

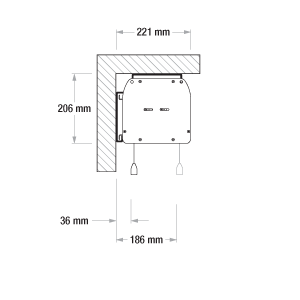

Same type of case and same installation method also for big brother Max One: quick wall- or ceiling-mount, with front or rear drop of the canvas. The version without case is supplied with two side brackets for wall and ceiling mounting and use a pivot with a range of 7 cm to make the installation easier.
